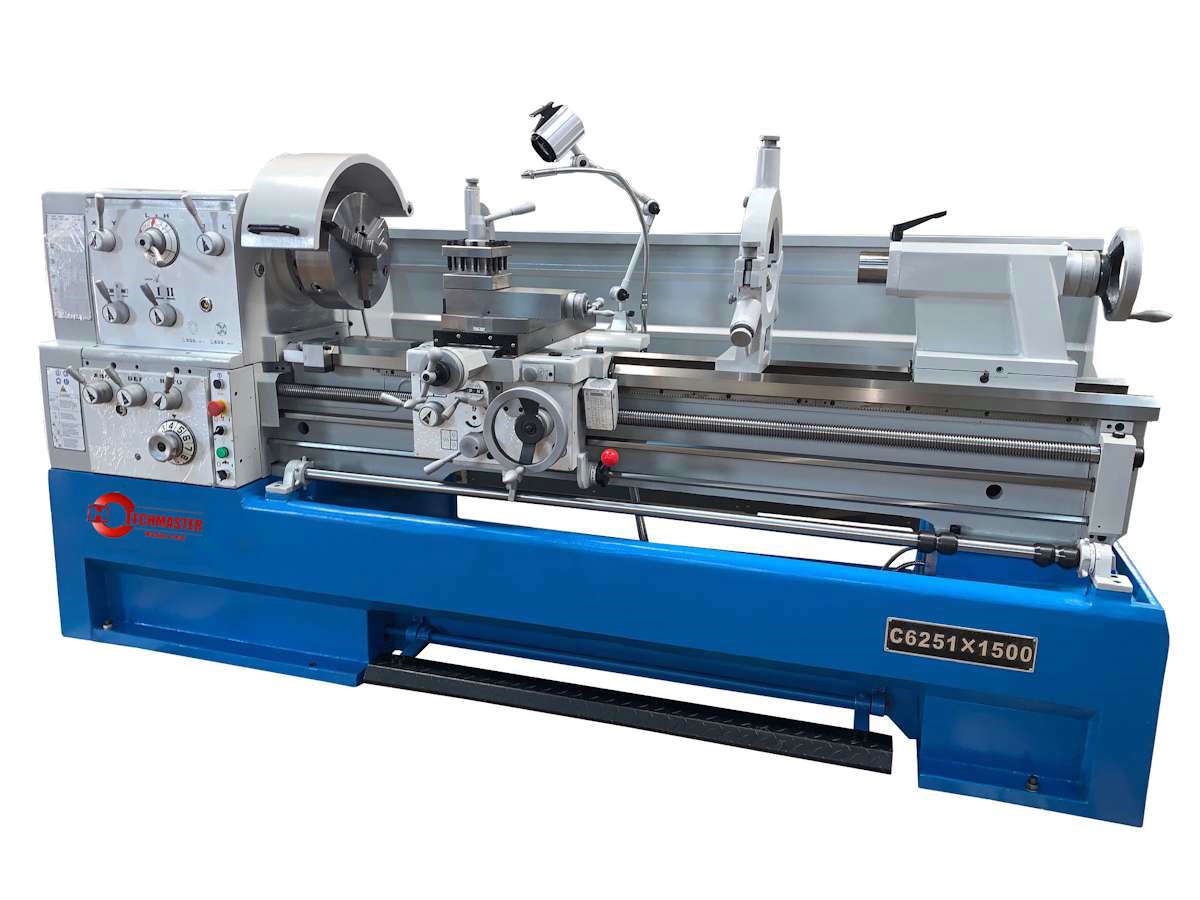

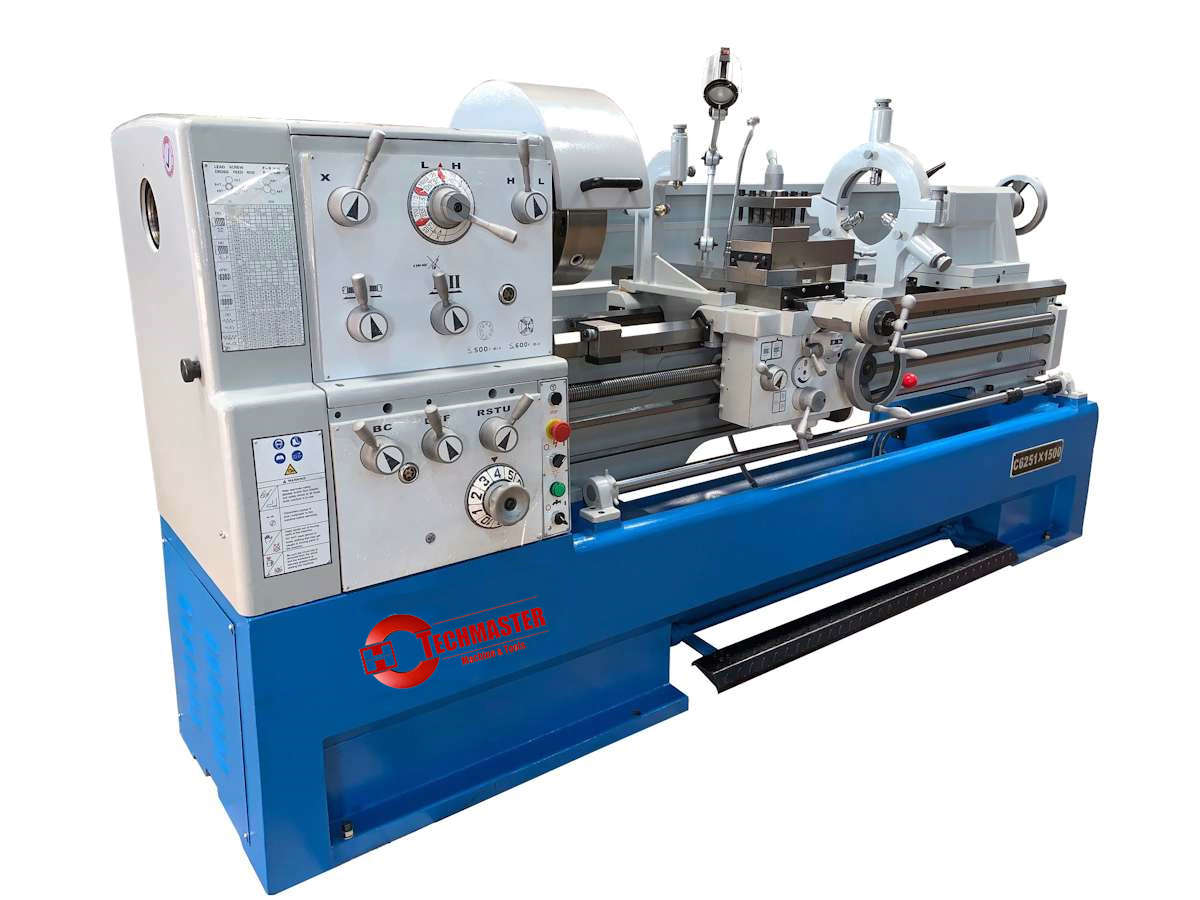

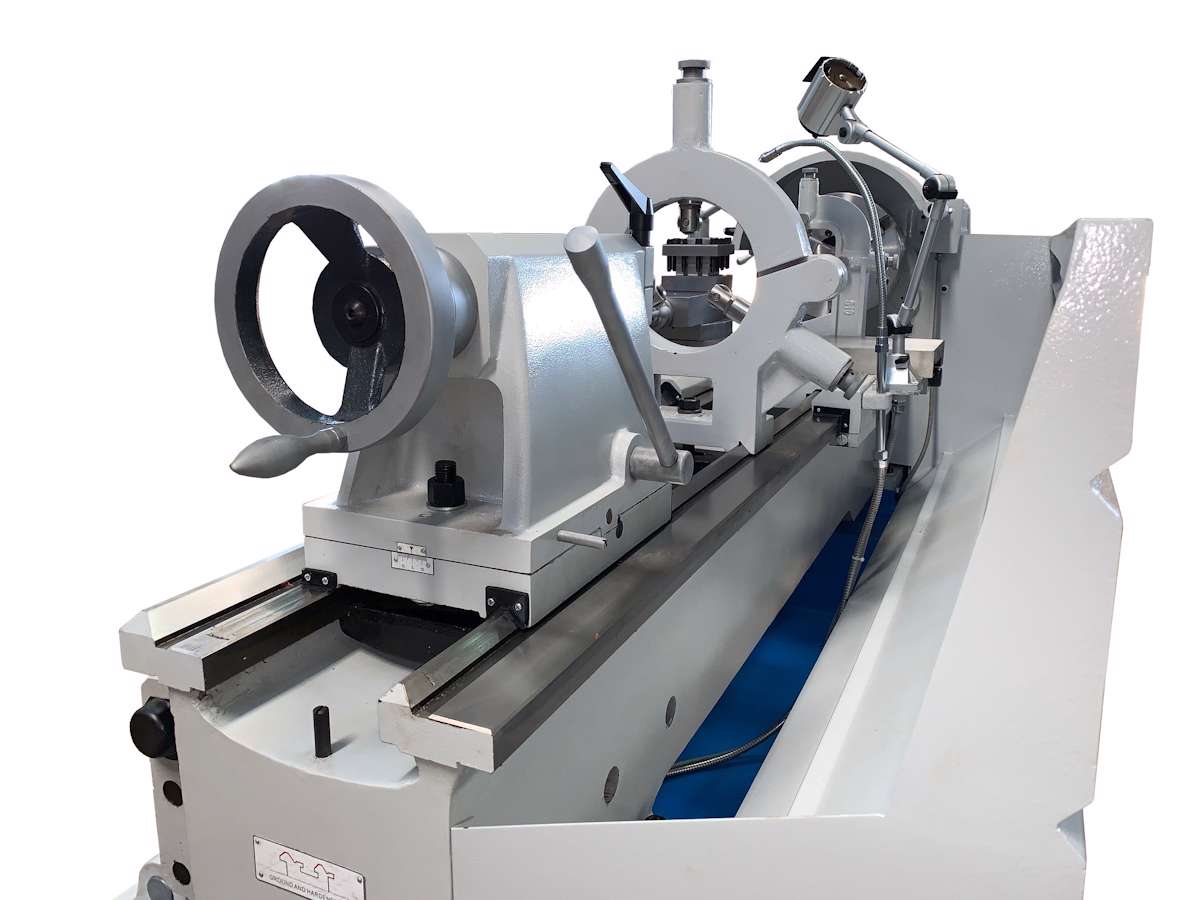

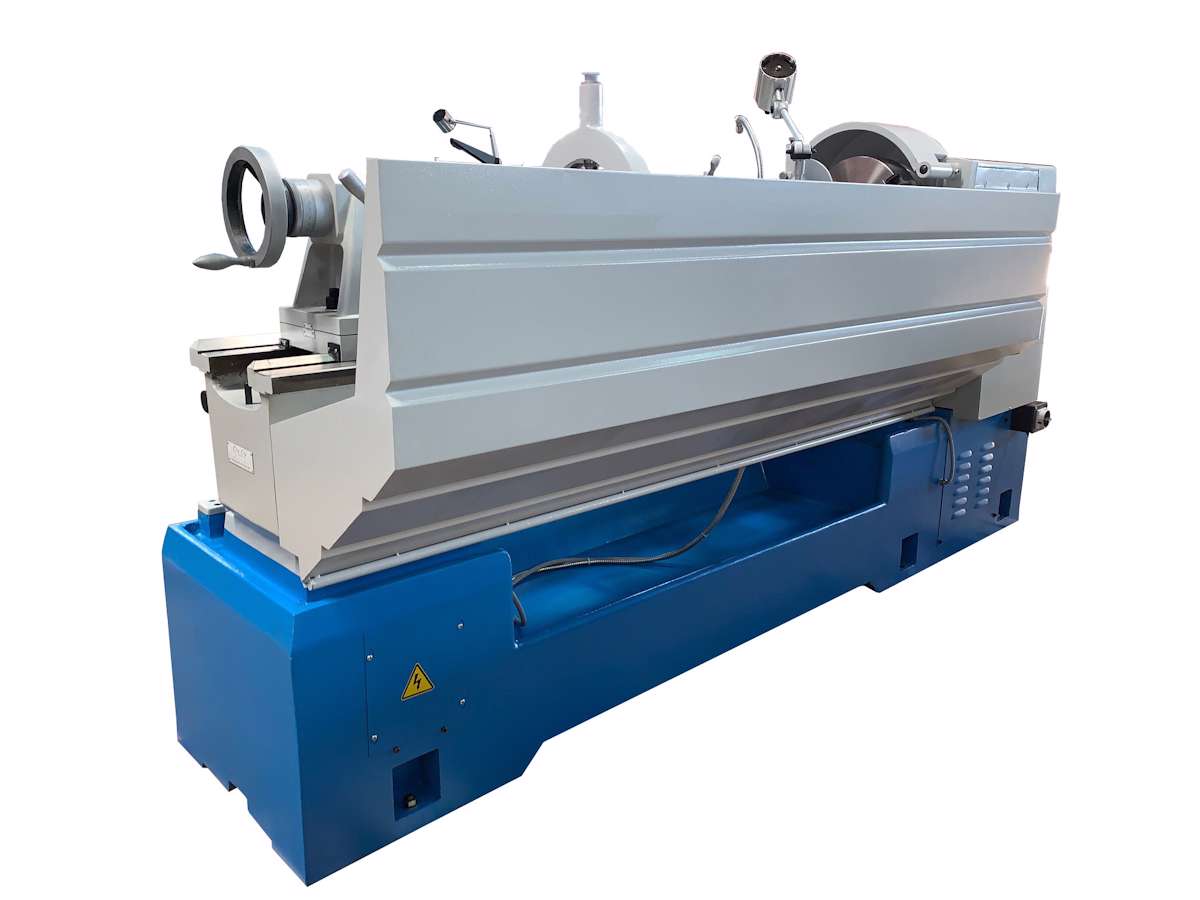

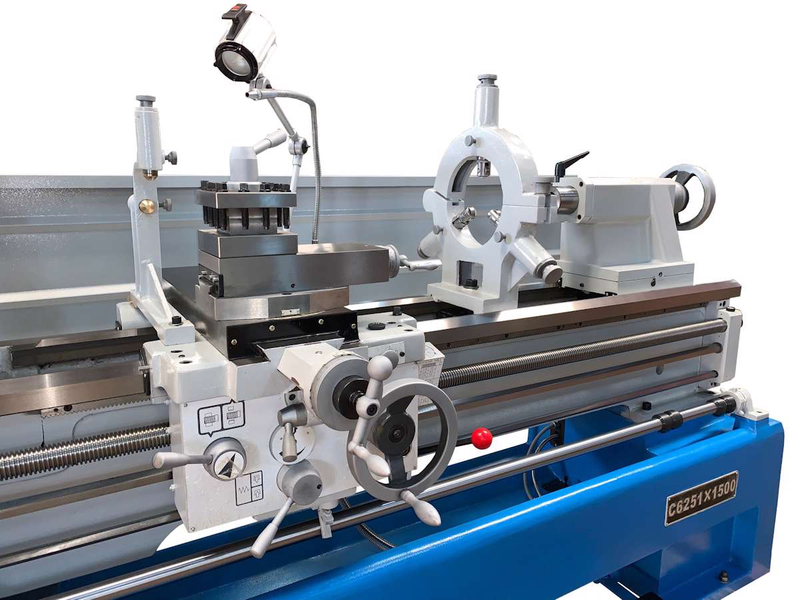

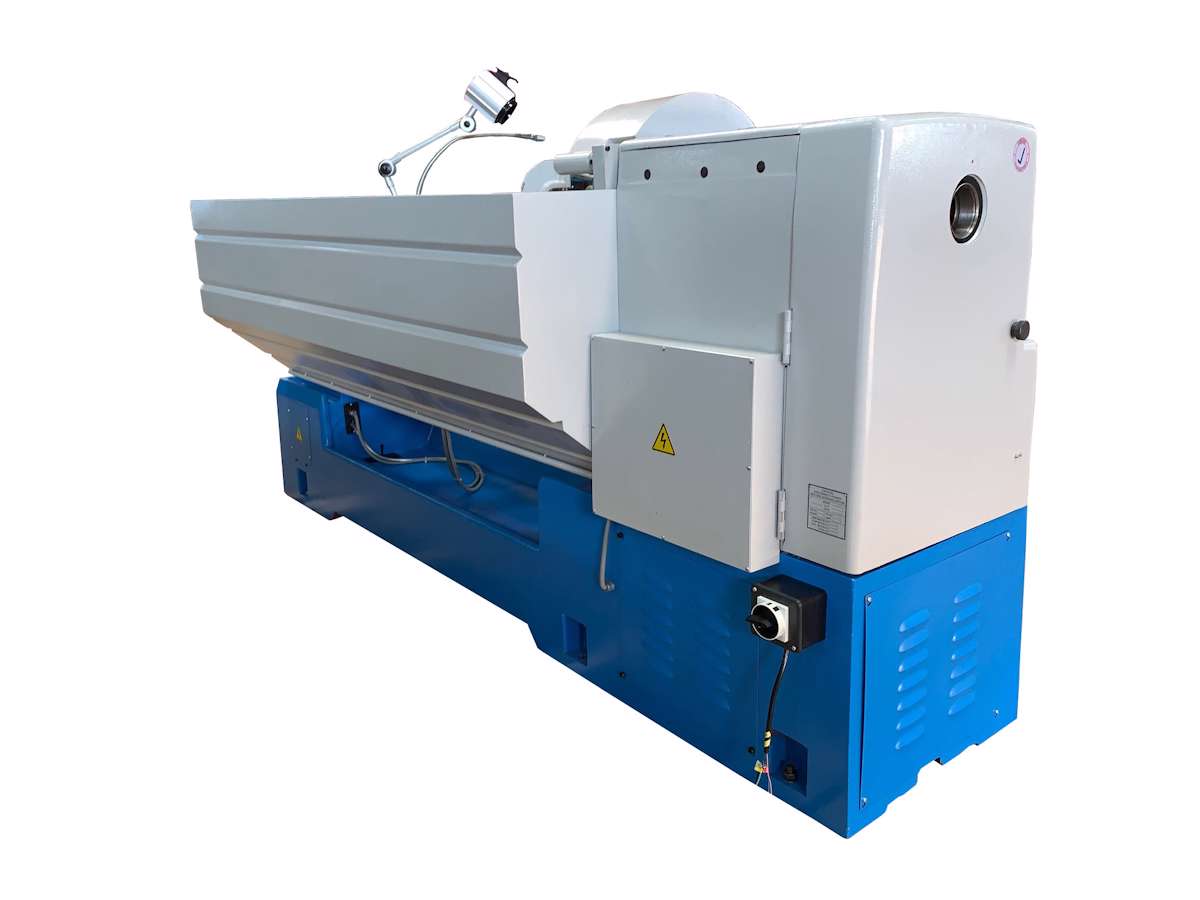

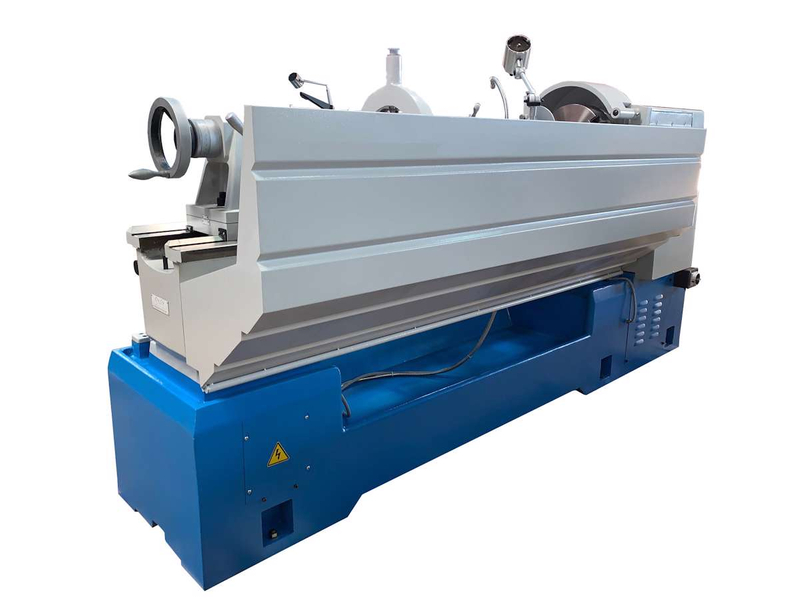

Torno industrial C6251 x1500

Distrito Between centres: 1000/1500/2000/3000
Swing Over bed: 510mm
Swing over cross slide: 305mm
Swing in gap: 735
Length of gap: 170mm
Bed Width: 350mm
Spindle Nose: D1-8
Spindle bore: 80mm
Taper of Spindle bore: MT 7
Spindle Speed Range: 12 Changes, 25-2000 r/min
Compound Rest Travel: 130mm
Cross Slide Travel: 316mm
Max. Tool section: 25x25mm
Lead Screw Thread: 6mm / 4TPI
Long Feed Range: 35 kinds, 0.059-1.646 mm/rev
Cross Feed Range: 42 kinds, 0.020-0.573 mm/rev
Thread Pitch Metric: 47 kinds, 0.2-14mm
Thread Pitch Imperial: 60 kinds, 2-112 TPI
Thread Pitch Diameter: 50 kinds, 4-112 TPI
Thread Pitch Module: 34 TIPOS, 0.1-7MP
Quill Ø: 75 mm
Viajamiento de pluma: 180 mm
de pluma conta: MT 5
Motor de correo: 7.5kW
Dimensiones: 2390/2840/3340/4340X1150X1430 MM
PESO: 2460/2550/2840/3270 Kg


Accesorios de máquina:
FacePlate
3-Jaw Chuck
4-Jaw Chuck Taily
Taily Taving Taving Taving
Taving Taving.
