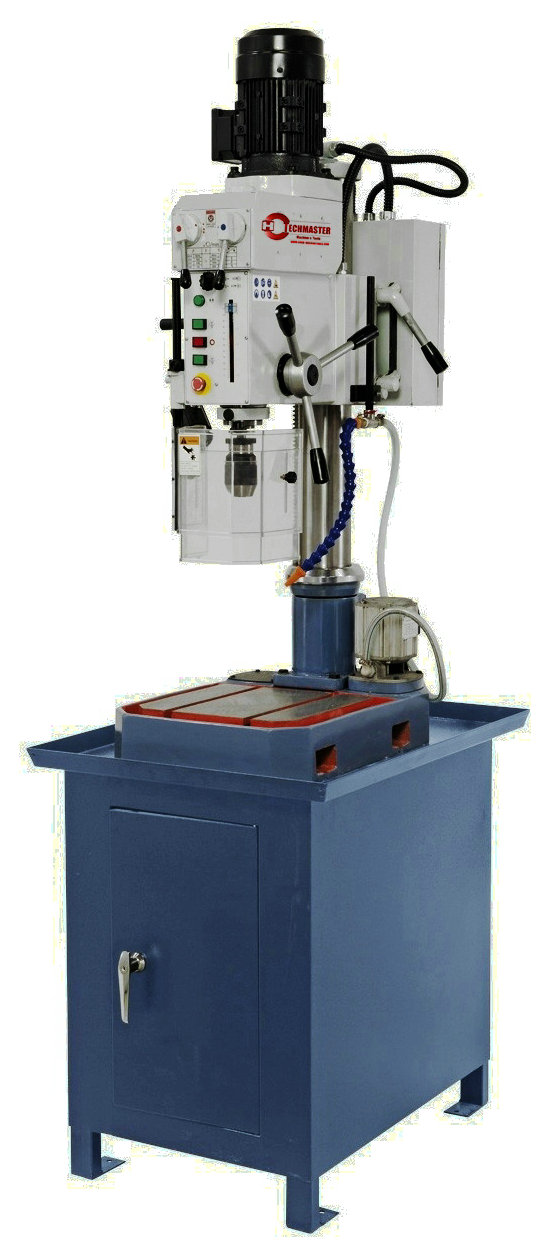

Máquina de perforación vertical estilo Europa Zn4030t refrigerante

Cantidad:
El bajo costo y el alto rendimiento hacen que este taladro de mesa con un engranaje con una capacidad de perforación de 30 mm sea un modelo popular para talleres y cerrajeros. Este modelo está equipado con un dispositivo de refrigerante.

Technische Spezifikationen

Capacidad de perforación máx.

30 mm

Corte de hilo Máx.

M16

Cucar

1 - 13 mm / b 16

Cónico de Morse

Mt 3

Velocidades de huso

(6) 125 - 2825 rpm

Huso de distancia a columna

240 mm

Huso de distancia a la base

655 mm

Golpe de husillo

115 mm

Diámetro de la columna

100 mm

Tamaño de ranura T

14 mm

Superficie de trabajo de la base

320 x 315 mm

Potencia de salida del motor S1  100%

0,75 kW / 400 V

Entrada de energía del motor S6  40%

1,1 kW / 400 V

Dimensión de la máquina (W x D x H)*

450 x 700 x 1440 mm

Peso aprox.

170 kg

* sin soporte

CARACTERÍSTICAS

  • Lever on gear head allows easy speed adjustment
  • Adjustable drill depth stop includes scale
  • Absolute concentricity ≤0,02 mm, measured at spindle
  • Left and right rotation allows thread cutting
  • Grey, cast-iron table includes T-slots and coolant grooves
  • Automatic tool release device and LED lamp come standard
  • High concentricity - spindle runs on high-quality bearings
  • Hardened, polished gear wheels ensure smooth run
  • Solid, polished steel column is designed for constant use



Accesorios estándar:

  • Taladro Cuck 1 - 13 mm / b 16
  • Drill Chuck Arbor Mt 3 / B 16
  • Manga de taladro de taper mt 3/2, mt ​​3/1
  • Dispositivo automático de liberación de herramientas
  • Coolant device
  • Luz de trabajo LED
  • Cubierta protectora ajustable de altura
